Completed Roofing Work Across Plymouth & the South West
When you pay for a roof repair or a complete re-roof, most of the critical work happens up on the scaffold where you cannot easily see it from the driveway. Below are photographs taken directly on our own jobs across Plymouth, South Devon, and East Cornwall. You can see the stripped timber framing, the breathable membranes, the treated battens, and the finished slate, tile, and flat roof installations before the scaffolding comes down.
Proper Sub-Roof Preparation
A new roof is only as watertight as what sits underneath the tiles. Our photos show how we strip roofs in controlled stages, splice and sister rotted rafter feet, lay vapour-permeable membranes, and fix treated 25x50mm battens before a single slate or tile goes back on.
Weather-Tight Lead & Ridge Details
South West coastal gales quickly find weak junctions. You will see examples of Code 4 and Code 5 milled lead valleys, stepped chimney flashings chased neatly into brickwork joints, and mechanical dry ridge and hip systems that will not crack or wash out in winter rain.
Flat Roof Decking & Waterproofing
When replacing a flat extension or garage roof, we strip down to the joists where needed, lay fresh 18mm OSB3 tongue-and-groove decking with proper falls to prevent water ponding, and finish with multi-layer torch-on mineral felt, GRP fibreglass, or EPDM rubber.
On-Site Project Photographs
Every photograph below is from a job carried out by Tile Top Roofing Specialists LTD. We photograph our work in progress as well as the finished roof so our customers can see the exact materials and timber work they are paying for.
A residential hipped roof stripped and fitted with breathable membrane and treated timber battens, with roof tiles stacked on scaffolding ready for re-tiling.
A newly installed multi-layer torch-on felt flat roof on a residential brick extension with clean white fascia drip edges, abutting a pitched tiled roof.
A newly installed seamless grey GRP fibreglass flat roof on a domestic extension, showing dressed upstands and perimeter trims around a timber skylight opening.

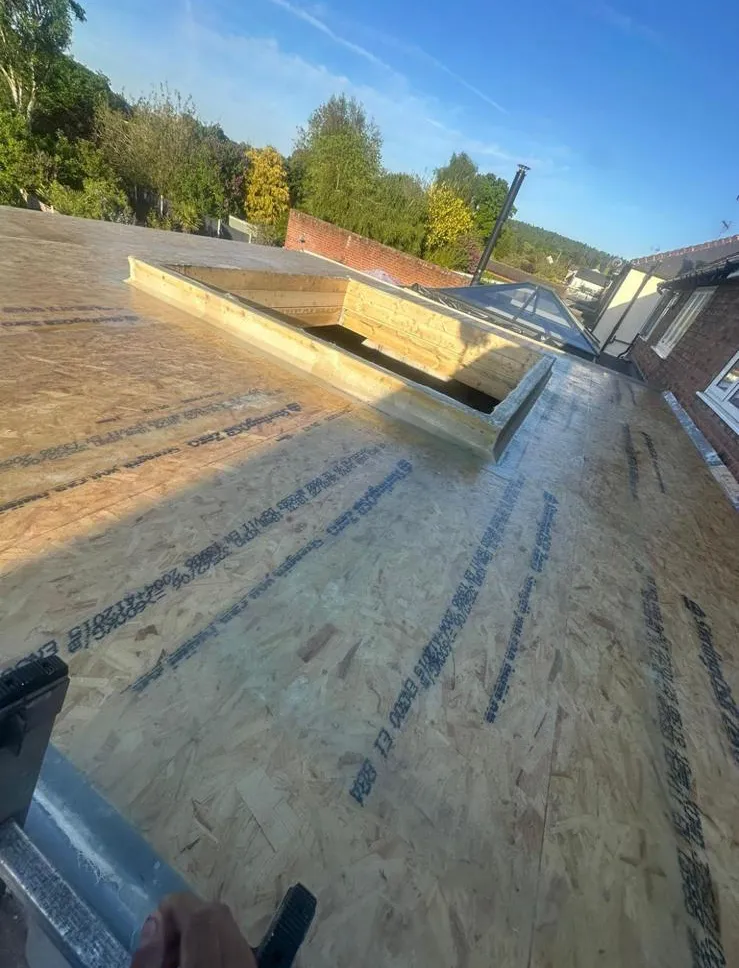

Newly laid 18mm OSB3 decking boards on a residential flat roof extension with a constructed timber curb upstand ready for a roof lantern installation.
Newly laid OSB3 tongue-and-groove timber decking on a flat roof extension, complete with a structural raised timber upstand framed for a roof lantern or skylight installation.
A hipped pitched natural slate roof completed with mechanical ridge and hip tiles, featuring stepped lead flashing around an adjacent chimney stack under an overcast sky.
A newly installed natural slate roof with a mechanical dry hip system, lead-flashed chimney stacks, and scaffolding alongside the eaves.
Mineral-surfaced felt flat roof section adjoining a pitched tiled roof and stone parapet coping
High-angle view of a completed pitched slate roof replacement featuring capped ridge tiles, an integrated roof window, lead valley detail, and an adjoining flat roof section viewed from scaffolding.
An aerial perspective along the ridge of a newly installed slate roof, complete with mechanical dry ridge capping, skylights, and active perimeter scaffolding.
Newly laid red concrete profile roof tiles installed around an integrated skylight roof window with lead flashing on a pitched roof.

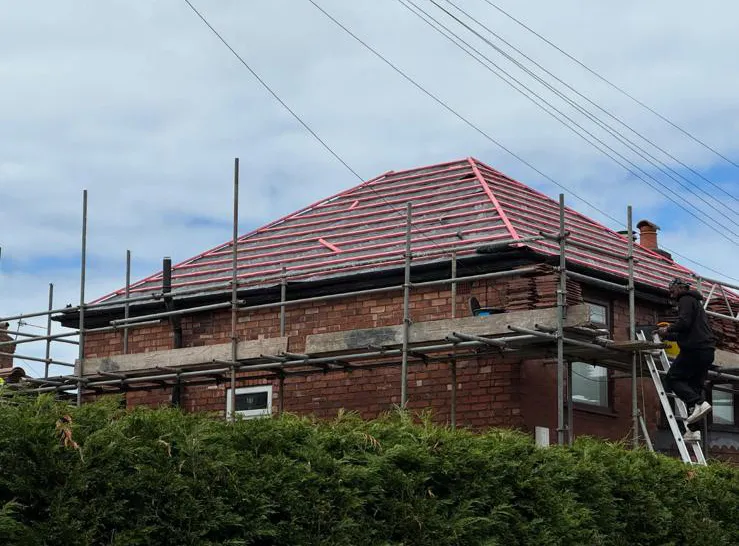

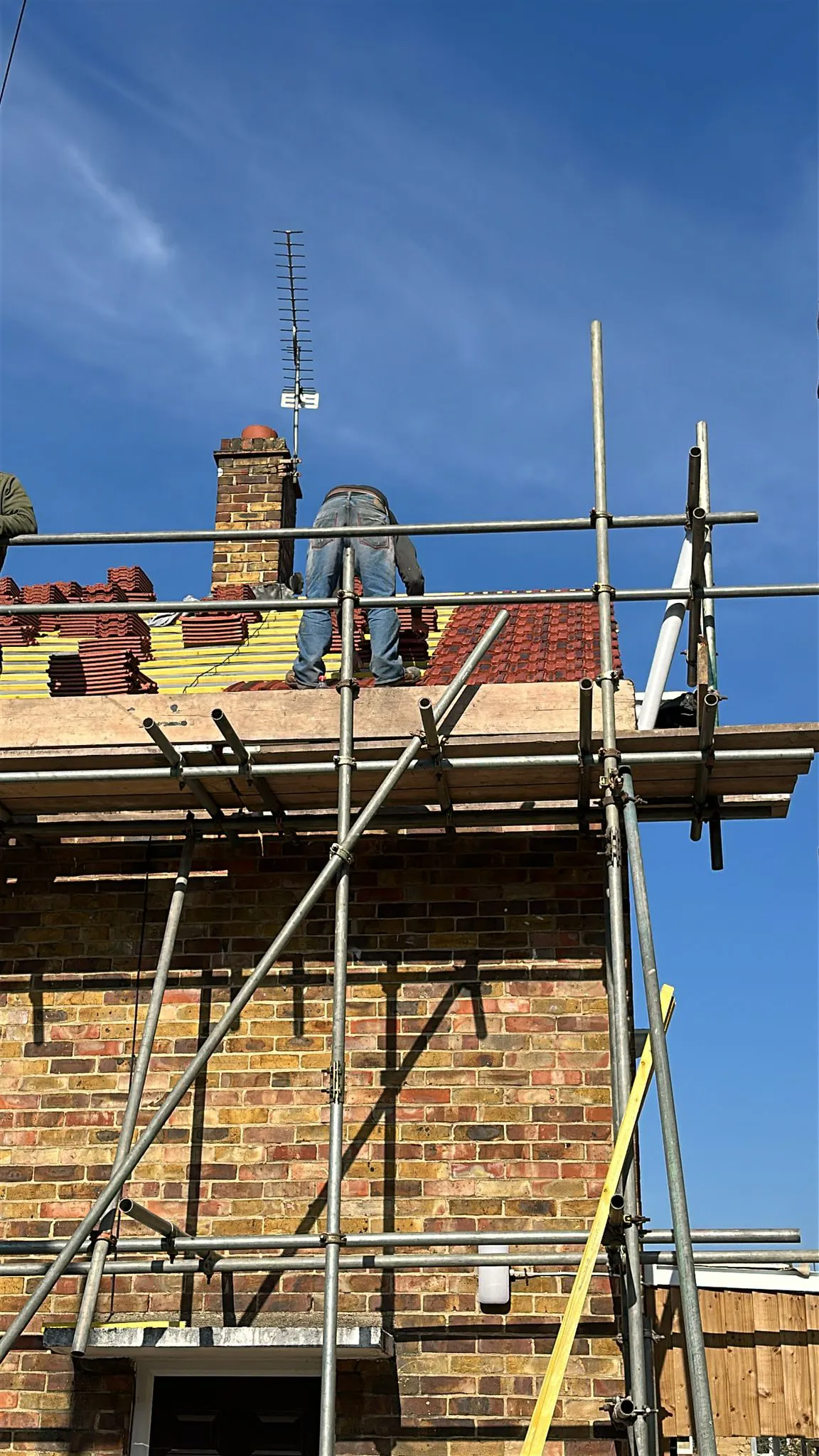

Roofer installing concrete roof tiles onto treated timber battens from external scaffolding on a brick property
A roofer sweeping down newly laid interlocking pitched roof tiles around a skylight, with breathable underlay and treated roofing battens exposed on the adjoining pitch.

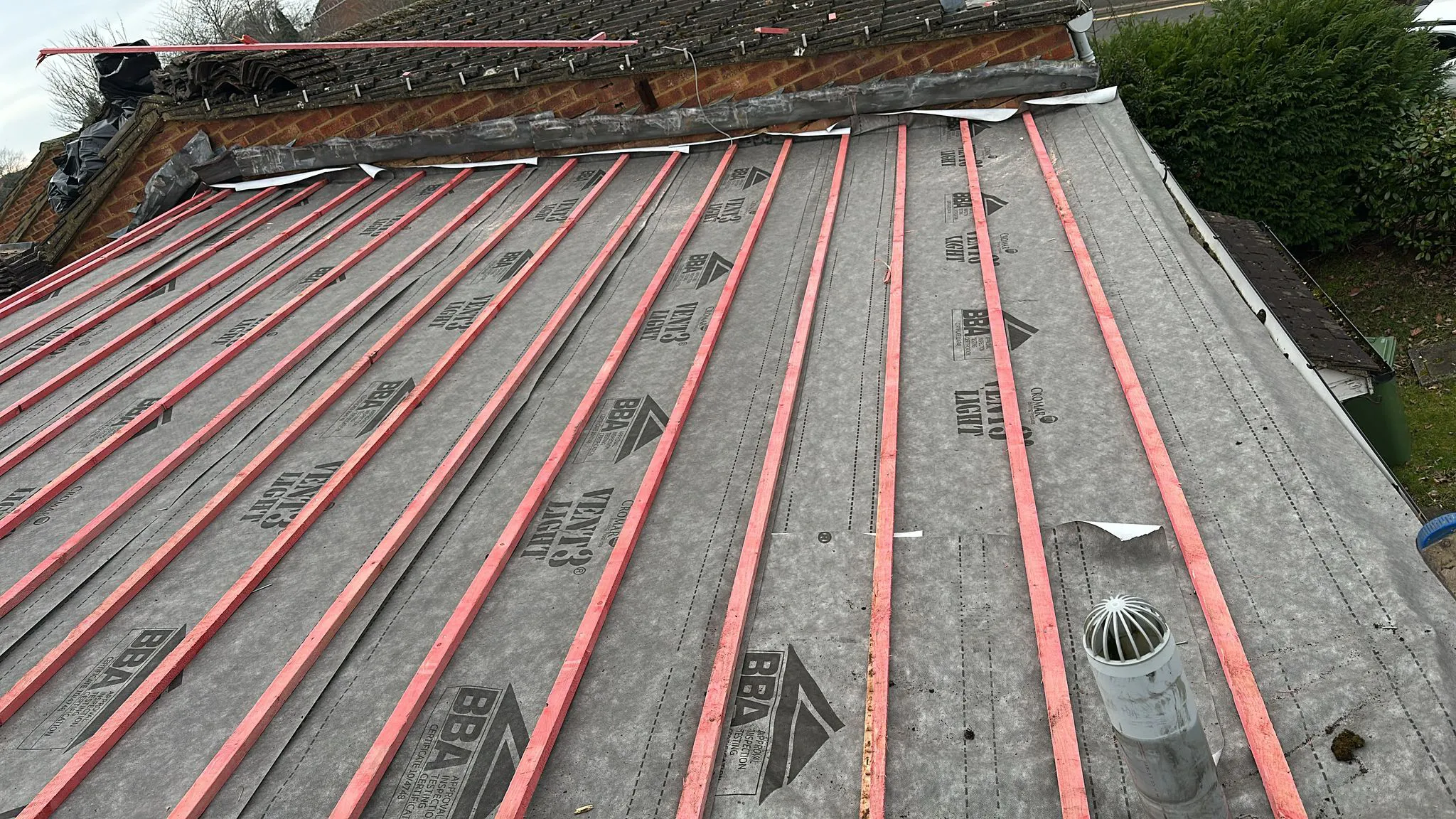

Pitched roof renewal showing freshly installed breathable underlay membrane and treated timber roofing battens leading up to a central brick chimney stack.
Roofer preparing a pitched roof slope with breathable underlay membrane and treated timber battens alongside an exposed brick chimney stack during a re-roofing project.
New treated timber rafters being framed and pitched against a brick wall during structural roof repairs and timber replacement work.
Exposed roof timber framework undergoing rafter replacement and structural repairs around a brick chimney stack during a complete re-roof.
High-angle view of a pitched residential roof featuring newly installed dark interlocking concrete tiles and a mechanically fixed dry ridge system along the apex.
Elevated view across an interlocking concrete tiled pitched roof featuring a modern dry ridge line and dry verge system installed on a residential property.
Roofer installing multi-layer torch-on felt roofing membranes on a residential flat roof extension overlooking a garden
A roofer carrying out structural timber repairs and framing an opening within pitched roof rafters with breathable membrane fitted

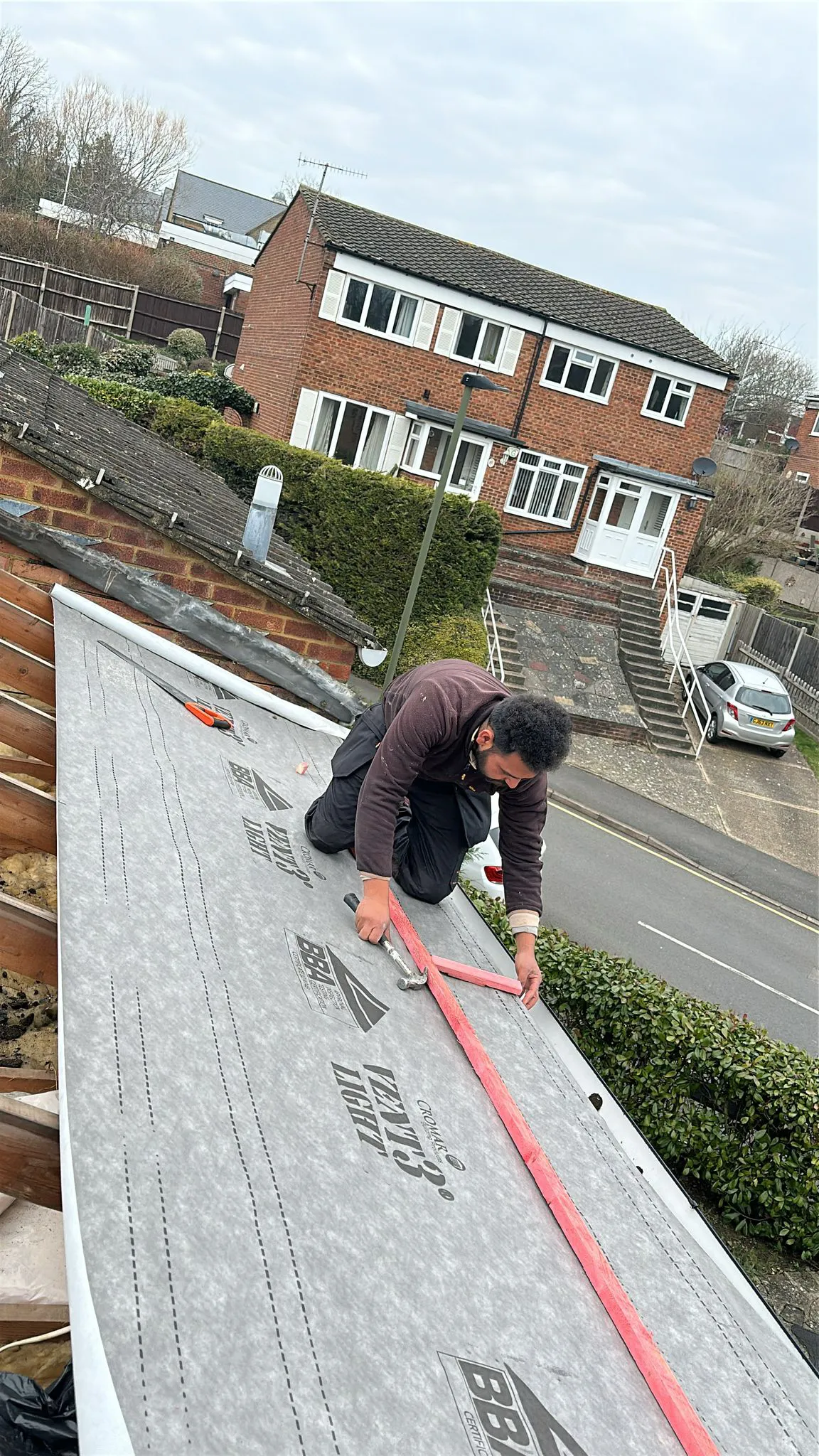

A roofer fixing treated timber roofing battens over breathable Cromar Vent3 underlay during a pitched roof installation on a residential property.
Breathable roofing underlay membrane and treated counter battens installed on a pitched roof during a re-roofing project.
Installation of heavy-duty Soprema flat roof bituminous membrane on a residential extension roof abutting an existing pitched tile roof.
Close-up view of a pitched natural slate roof with neatly bedded hip or ridge capping tiles and clean mortar joints.

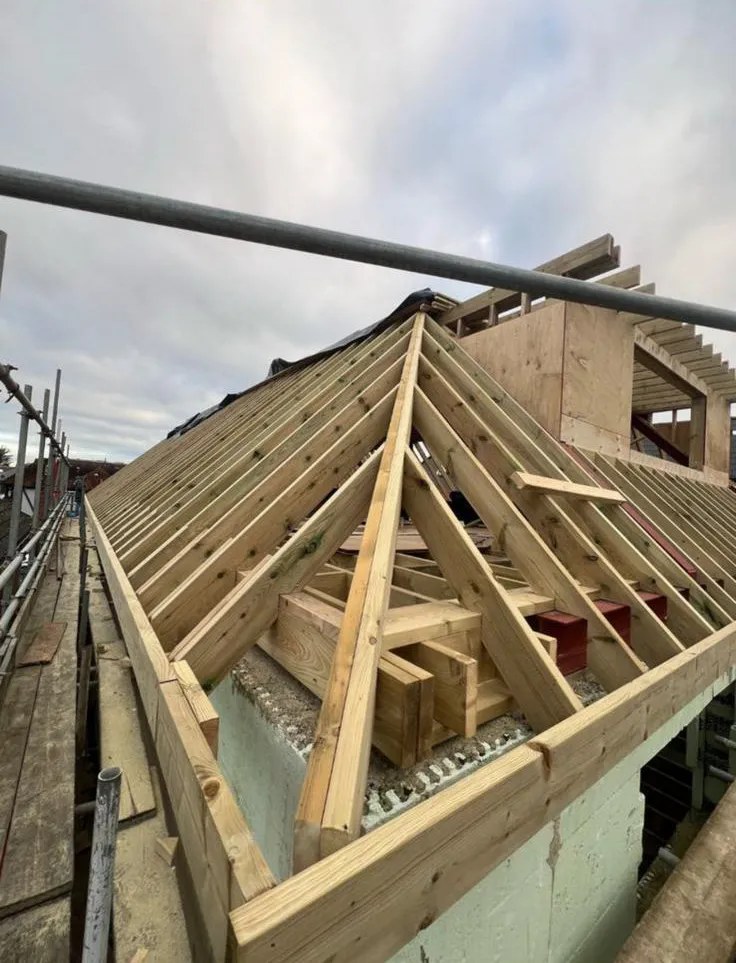

Structural timber roof framing and hip rafters under construction on a pitched roof with dormer framing and external scaffolding.
New lead valley lining installed between pitched roof slopes with green breathable membrane and treated timber battens during a roof replacement project.
Roofers installing natural slates on a pitched hip roof with breathable membrane and treated battens visible

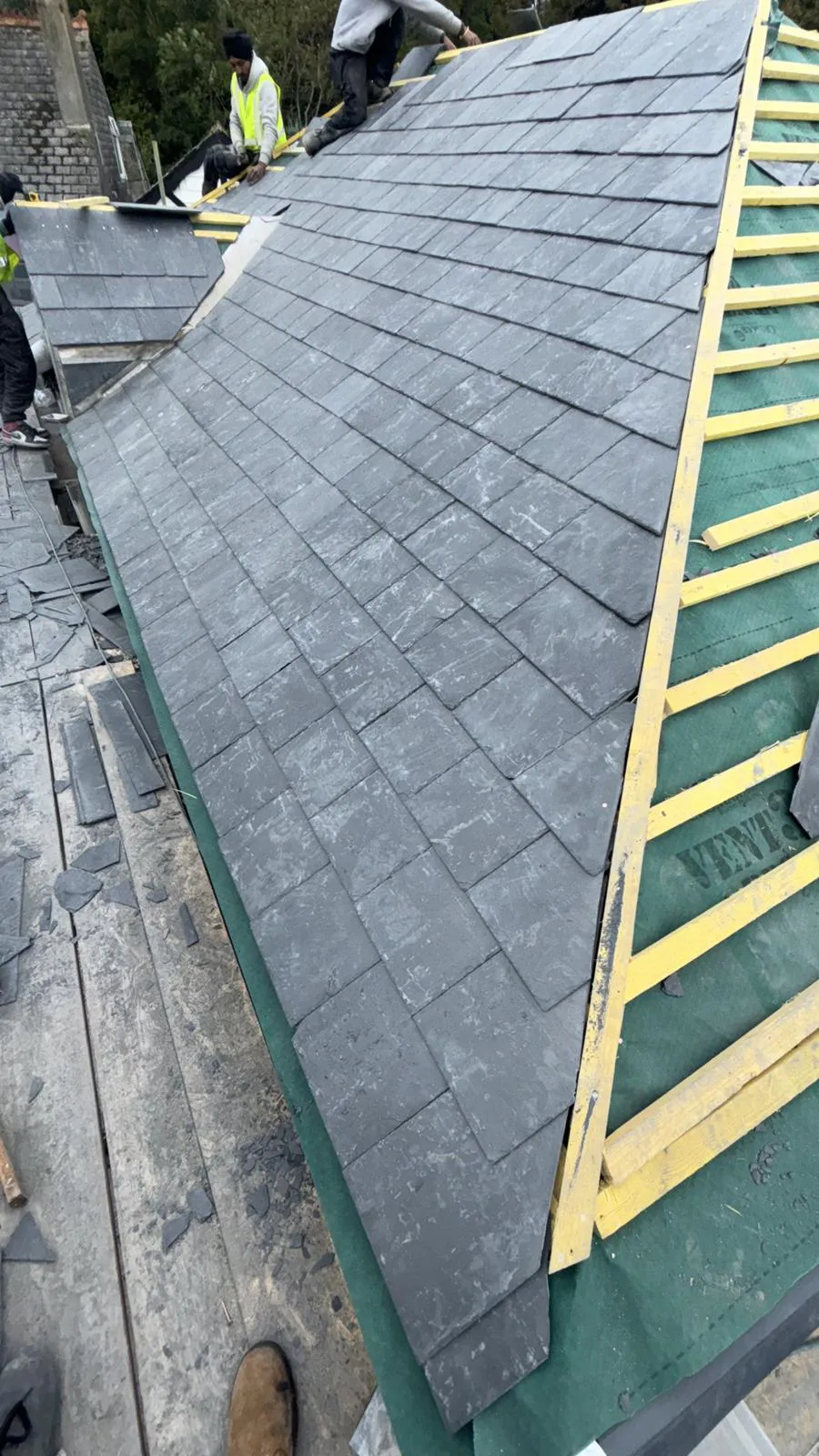

A pitched slate roof installation in progress, showing new slates being laid in stepped courses over treated timber battens and a vapour-permeable green roofing membrane.
Multi-level domestic flat roof extension completed with a multi-layer torch-on mineral felt system, featuring neat drip edge details and rooflight upstands.
A roofer installing structural timber rafters and framing into an existing pitched roof structure
A roofing specialist installing treated timber battens over a breathable vapour-permeable underlay membrane during a pitched re-roof installation.
Breathable roofing underlay membrane and treated counter battens installed during a pitched roof replacement project
Installation of a Soprema torch-on felt roofing membrane on a residential flat roof extension meeting a pitched tiled roof
Double-lap natural slate roofing installation detailing clean eaves and neatly bedded hip ridge capping on a pitched residential roof.
New structural timber roof framing, hip rafters, and dormer framing erected on a residential pitched roof extension with scaffolding access.
New milled lead valley flashing installed on a pitched roof with breathable underlay membrane and treated timber battens alongside brick chimney stacks.
Roofers laying natural slates along a pitched hip elevation over breathable membrane and treated timber battens.
Natural slate installation in progress on a pitched roof, showing treated timber battens, breathable membrane underlay, and stepped slate courses.
Newly completed multi-layer torch-on mineral felt flat roof installation across split levels and skylight upstands on a brick residential extension.
