Dry Ridge & Dry Verge Systems In Plymouth

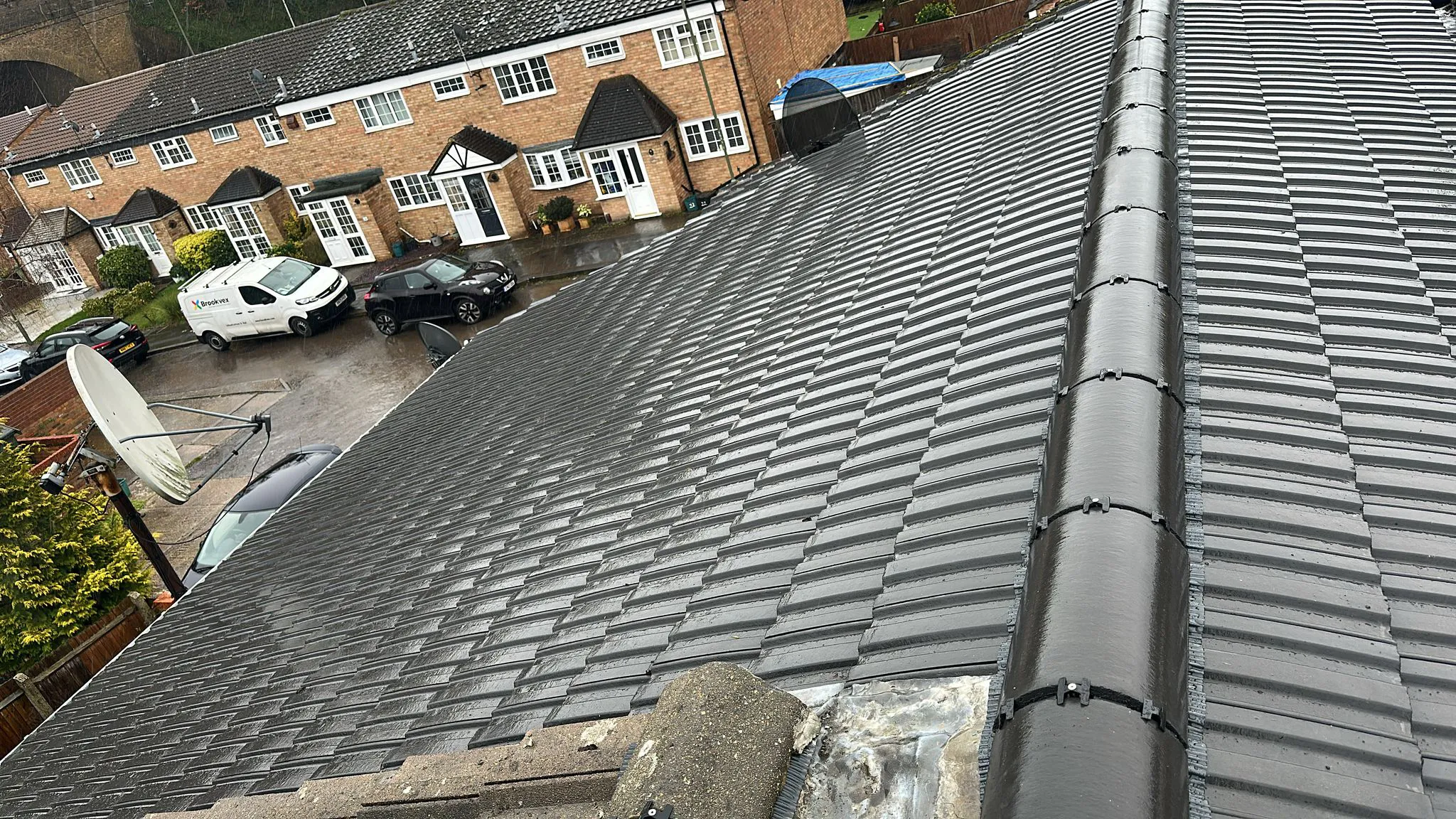

Mortar beds degrade under the heavy rain and driving coastal winds we get off Plymouth Sound, eventually drying out and breaking away from the tile edges. Every time the roof structure flexes under seasonal temperature changes, hair-line cracks widen until chunks of cement work loose and leave the ridge line vulnerable to wind lift. A mechanical dry ridge system replaces the sand-and-cement joint entirely with screwed clamping plates and breathable ridge seals that cannot crack or blow out.

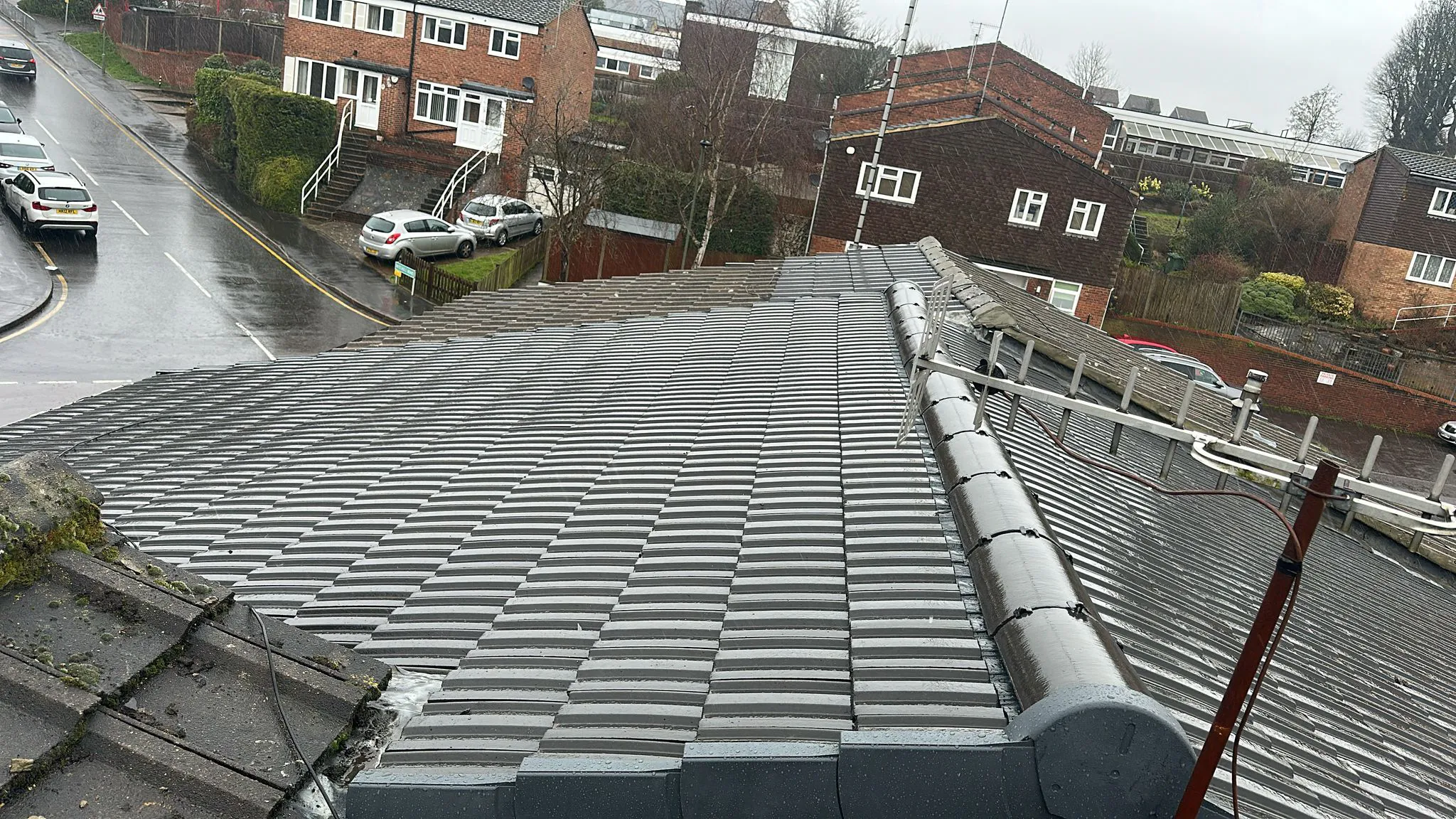

Dry verge systems work on almost all standard interlocking concrete pantiles and flat tiles common to post-war Plymouth estates, using profile-matched caps that grip each tile edge. They are not suitable for traditional wet-laid natural slate roofs, which require individual lead soakers, slate cloaking, or slate undercloak to seal the gable end correctly. During our initial roof inspection, we check the tile profile and existing battens to ensure mechanical verge units can secure firmly to the timber ends.

Yes, every ridge and hip tile must be carefully lifted so we can clear away all the cracked, degraded mortar right back to clean roof fabric. We inspect the top battens and timber fixings for rot, install a dedicated timber ridge batten if needed, and lay out a continuous breathable roll along the apex before securing the tiles with mechanical screws. Re-using sound, unbroken ridge tiles keeps material costs down, but trying to patch dry ridge parts over existing mortar will simply fail.

The roll-out membrane fitted beneath the dry ridge capping has built-in ventilation channels that allow warm, humid air to escape naturally from the apex of your roof space. This continuous airflow stops moisture droplets forming on your rafters and underlay without allowing wind-driven coastal rain to blow back inside. It works alongside your soffit vents to maintain passive roof ventilation all year round, eliminating the damp spots common beneath solid, non-breathable mortar beds.

We can retrofit dry verge units to an existing gable end provided the timber tile battens behind the verge are sound and project far enough to take the fixings. If the batten ends have rotted out from water creeping past cracked cement fillets, we cut the soft timber back and secure treated batten extensions to create a firm fixing point. Once the timbers are solid, the individual interlocking verge units screw directly into each batten end and lock the edge tiles securely against the weather.

Because every single verge cap and ridge clamp is mechanically screwed directly into the roof's structural timbers, they cannot blow loose the way cement-bedded tiles do once bond failure sets in. Traditional mortar relies purely on an adhesive bond that weakens with every winter freeze-thaw cycle, whereas heavy-gauge mechanical fixings are built specifically to resist severe coastal wind uplift. They are designed to withstand the sustained gale-force winds and squalls coming straight across the Tamar Estuary and coastal Devon.
